TM-GYGD-IV Borehole Camera up to 1000m

TM-GYGD-IV

Features.

· Capable of depths of 100m / 200m / 300m / 400m / 500m / even up to 1000m by special request,

· Very Attractive pricing

· Control Unit

· Panoramic view camera,

· Depth measuring device with down hole pulley.

GYGD-IV Borehole Camera is an upgrade from GYGD-III for depths of 100m / 200m / 300m / 400m / 500m, and even 1000m with panoramic camera, electric motor control and depth measurement.

TM-GYGD-IV Borehole Inspection Camera

T + M®

Detailed Products

Top of page

Clearance Sale:

Excess Stock to be cleared while stocks last. > Click for More...

< Return to Showcase

Description.

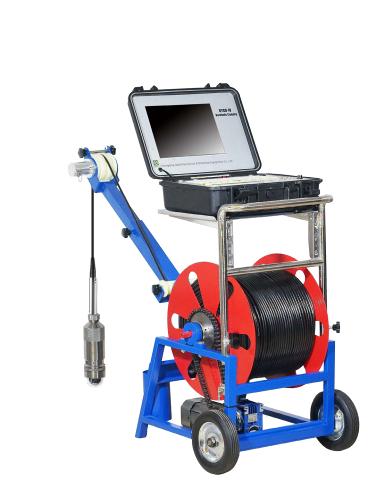

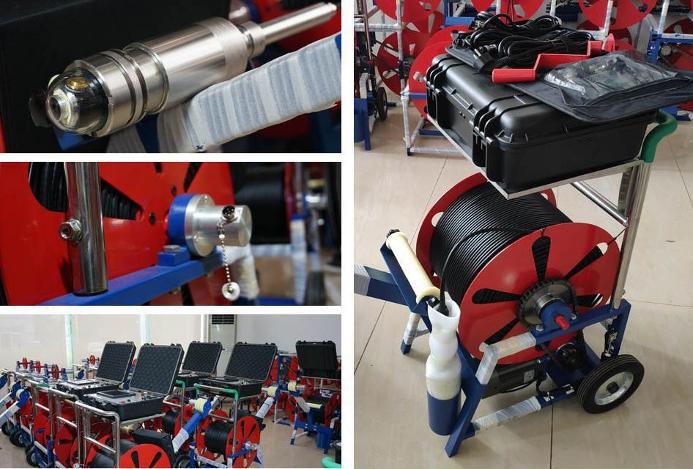

This is a video borehole camera that comes with a panoramic camera, control monitor with depth measuring device, and electric winch. It is mainly used underwater in water wells, hydrology, mining, drilling hole, petroleum, geotechnical, pipes and more.

Test our Service and

Measure with our

Instruments.

[ Back ]

Invite a Friend to this Site.

Technical Specifications.

Camera Unit

· Resolution: 850TVL

· Lights: Auto- backlight compensation, Front-mounted

LED patch lamp beads, the brightness of the light source is adjustable in 8 levels.

· Camera: focus can be adjusted manually; 360 degrees rotation horizontally, 180 degrees tilt

· rotation, free control, can stay in any position

(wider view than dual camera)

· Pressure: Max. 20Mpa (200 bar)

· Material: stainless steel

· Diameter: 75mm

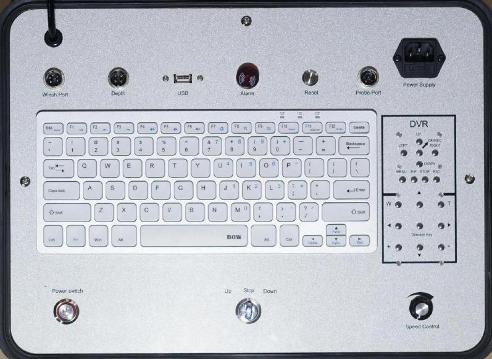

Control Unit

· 12 inch big screen

· Built-in DVR

· Storage unit: U disk 32GB (extendable)

· Display: depth, company name, date & time is available to display.

· Keyboard can edit during video recording

· Takes photos and videos

· Zoom function

· Input Power: 220V AC 50Hz

(12V DC or 110V AC voltage transformer is optional)

Winch Cable - 2 Types of Electric Winches Option

· Automatic electric winch, adopt second frequency

Conversion technology High quality RV gearbox

· With speed controller, freely adjustment for winch speed

· quipped with depth counter

· Cable length optional:

· wheels type 0-500M Cable

· square base type 501-1000M Cable
