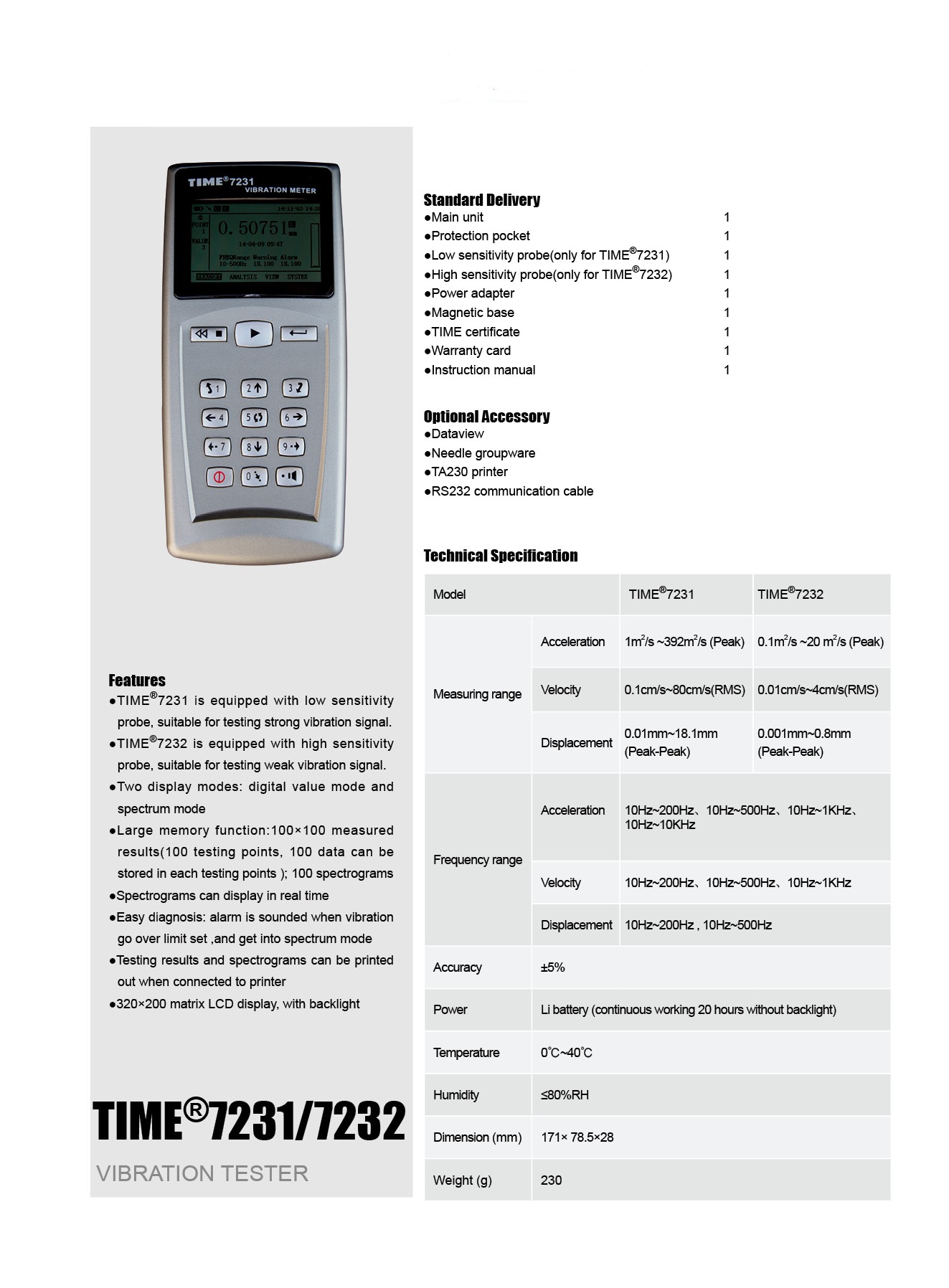

7231, 7232 Vibration Tester |
Vibration Tester |
|
· 7210 is equipped with low sensitivity probe, suitable for testing strong vibration signal. · 7220 is equipped with high sensitivity probe, suitable for testing weak vibration signals. · Two display modes: digital value mode and spectrum mode. · Large memory function:100 X 100 measured results(100 testing points, 100 data can be stored in each testing points ); 100 Spectral chart. · Spectrum chart can display in real time. · Easy diagnosis: alarm is sounded when vibration goes over limit setting ,and then goes into spectrum mode. · Testing results and spectrum chart can be printed out when connected to printer. · 300 X 200 matrix LCD display, with backlight. |
|
Main unit 1 |
|
Optional accessories: Needle groupware |
|
We would be very pleased to see you at our offices and show room at the address given above. Please use the maps supplied on our Contact Us page, or call us for directions, should you not be using our GPS Co-Ordinates supplied. It will be our pleasure to assist with your unique requirements. We trust that your visit will be an enjoyable one. T+M® For Good Measure. |
|
Please Note: This is not our complete range, so please contact us for further information on any product that you require, which is not seen on our site. You can call us on +27 (011) 683 4365 or email us by clicking here. |
|
Copyright © 2009—2025 Test and Measurement Instruments C.C. | All rights reserved TV310, TV320 Time Group Vibration Meter |
|
T + M ® |
|
Excess Stock to be cleared while stocks last. > Click for More... |
|
T + M ® |
|
Test our Service and Measure with our Instruments. |
|
Brand Names |
|
All brands, trade names, trade marks, and logos are the property of their respective owners. |
|
Ph: +27 (011) 683 4365 / 6 E-mail: sales@instrumentsgroup.co.za
Physical Address: 3 Angelica Ave, Glenvista, Johannesburg, 2091 SOUTH AFRICA
Postal Address: As Above. |
|
This Month’s Special |
|
Click Ex-Series for Spec. Also: Thermal Imagers |
|
Technical specification |
|
|
TIME®7231 |
TIME®7232 |
|
Measuring range |
Acceleration:1m/s2~392 m/s2(Peak) Velocity:0.1cm/s~ 80cm/s(RMS) Displacement:0.01mm~18.1mm(Peak-Peak) |
Acceleration:0.1m/s2~20 m/s2(Peak) Velocity:0.01cm/s~4cm/s(RMS) Displacement:0.001mm~0.8mm(Peak-Peak) |
|
Frequency range |
Acceleration:10Hz~200Hz, 10Hz~500Hz, 10Hz~1KHz, 10Hz~10KHz Velocity:10Hz~200Hz, 10Hz~500Hz, 10Hz~1KHz Displacement:10Hz~500Hz |
|
|
Accuracy |
+-5% |
|
|
Temperature |
0 degC~40C |
|
|
Relative humidity |
< 80% |
|
|
Dimension |
171 X 78.5 X 28 (mm) |
|
|
Power |
Li battery (continuous working 20 hours) |
|
